GCR12-1300 Collaborative Robot | Max Payload: 12 KG | Reach: 1300 mm
The GCR12-1300 is a cost-effective, next-generation versatile collaborative robot designed to optimize factory operations. Featuring a lightweight design, quick deployment, simple operation, enhanced safety, and energy efficiency, it is the ideal solution for high-efficiency, low-cost manufacturing. Its compact size and lightweight construction make it well-suited for industries such as 3C (Computer, Communication, and Consumer Electronics) and automotive, providing both space-saving benefits and exceptional performance.
Features
Safety
DUCO is equipped with safety features like collision detection, force, and power detection. It is certified by TUV SUD and is the first domestic cobot manufacturer to pass the IEC61508 certification, ensuring safer human-machine collaboration.
Smart
Deep integration of 2D/3D vision
High-sensitivity force sensors and control
Cloud-based robot data monitoring and remote OTA upgrades
One-click deployment of multiple devices and remote data backups
Wide Application
Supports multiple scene software packages such as welding, palletizing, gluing, etc.
Compatible with various peripheral interfaces (DI, DO, A/I, etc.)
Full ecosystem support for diverse application development
Easy Operation
Direct teaching programming, making it easier to use
After just 4 hours of training, users can perform basic programming
Eco
High load-to-weight ratio with power consumption as low as 200W
No need for lubrication oil throughout its lifetime, reducing maintenance costs
Contributes to lower environmental costs and aids in the development of carbon neutrality and carbon peaking goals.
Application
- Polishing
- Painting
- Loading And Unloading
- Palletizing
- Welding
- Gluing
- Screwing
- Assembly
- Quality Inspection
- Material Handling
Specifications
| Parameter | GCR12-1300 | |
| Cobot | Max Payload | 12 kg |
| Degree of Freedom | 6 | |
| Max TCP Speed | 3.8 m/s | |
| Max Straight-line Speed | 1.5 m/s | |
| Reach | 1300 mm | |
| Reposition Accuracy | ±0.03 mm | |
| Power Consumption | 500 W | |
| Installation | Installed in any direction | |
| IP Class | IP54/IP65 | |
| End I/O Port | 2D, 2DO, EtherCAT, RS485 | |
| Robot Package Size | 958x508x516 mm | |
| Net/Gross Weight | 37.8 kg / 46 kg | |
| Control Box | Input Power Supply | 220-240 VAC 47-63 Hz 10A |
| Communication Interface | TCP/IP, Modbus/TCP/Profinet | |
| I/O Interface | IP44 | |
| Size | 410x306x292 mm | |
| Weight | 1.3 kg | |

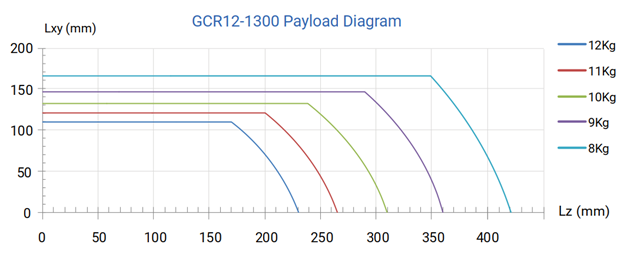

Payload Diagram

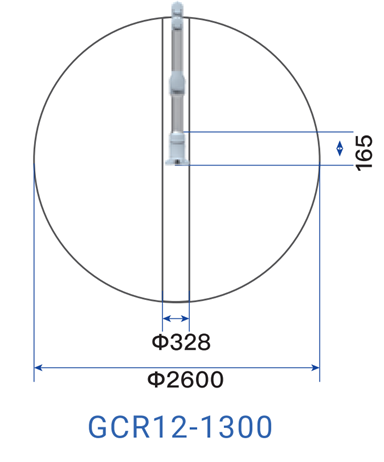

WorkSpace

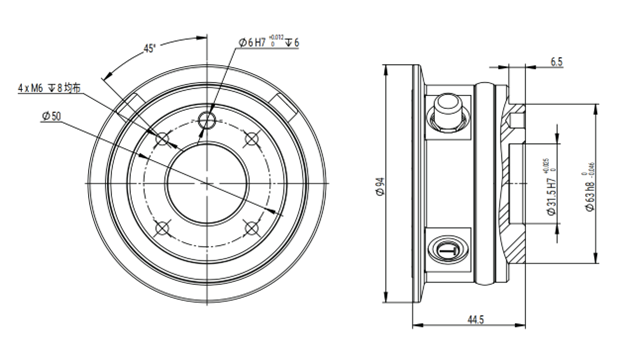

EOAT Flange
GCR16-960/GCR10-1300
GCR12-1300/GCR16-2000
Control System
The controller is used to control the robot’s operations such as loading and unloading, grasping, polishing, handling, welding, gluing and oiling, as well as realizing the input and output control. The latest DUCO controller has compact size while taking into account the safety and flexibility, and has better performance in the field of human cooperation. It can be fully compatible with multiple series of robots, and also can be independently applied to automatic control systems
